Installation
INSTALLATION 1.

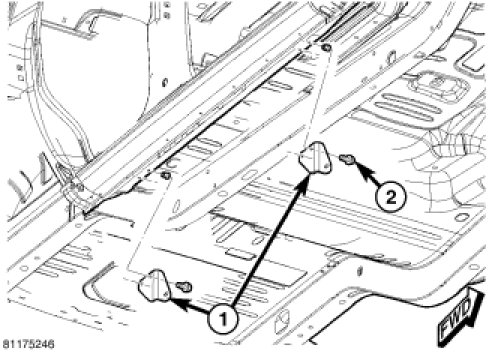

Install sill bracket (1) and install bolts (2).
2.
Tighten bolts to 23 Nm (17 ft. lbs.).
3.
Install
frame bracket (4) and install bolts.
4.
Install sill bracket nut (5).
5.
Tighten bolts and nuts to 23 Nm (17 ft. lbs.).
6.

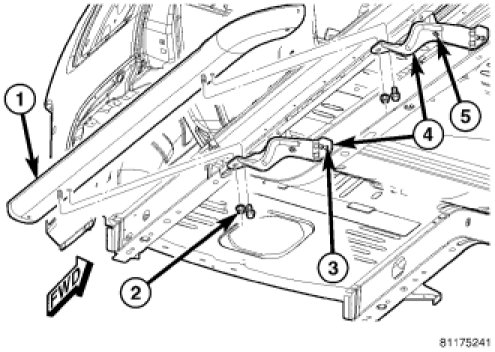

Install side step (1) and install bolts/nuts (2).
7.
Tighten bolts and nuts to 23 Nm (17 ft. lbs.).
