Removal

REMOVAL




1. Remove the wheel opening splash shield. Refer to Front Fender Liner.

2. Remove the grille. Refer to Grille.

3. Raise and support vehicle.

4. Release the inner support clips from within the fascia between the lights.




5. Release the support tabs beneath the headlamps and position the fascia assembly aside to access the fender support bracket bolts.




6. Remove the front wheel opening flare moldings.

7. Remove the fender support bracket bolts.




8. Remove the bolts and remove the fender.

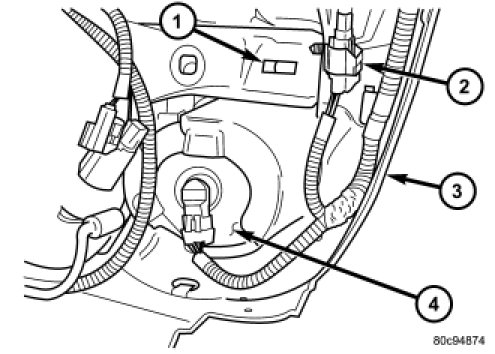

9. Remove the antenna body, if equipped (1).
