Installation






INSTALLATION

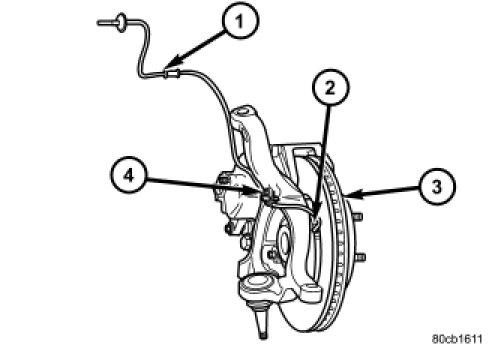

1. Install the wheel speed sensor (2) to the vehicle.
2. Install the wheel speed sensor wire (1) thru the wheel well.
3. Install the wheel speed sensor wire (1) to the hub/bearing.
4. Install the wheel speed sensor wire hold down (4) to the knuckle.
5. Install the wheel speed sensor mounting bolt to the hub. Tighten the mounting bolt to 13.5 Nm (120 in. lbs.).
6. Install the disc brake rotor (3).
7. Install the disc brake caliper adapter.
8. Install the tire and wheel assembly.
9. Reconnect the front wheel speed sensor wire connector to the inboard side of the wheel house being worked on.
