Installation
INSTALLATION 1.

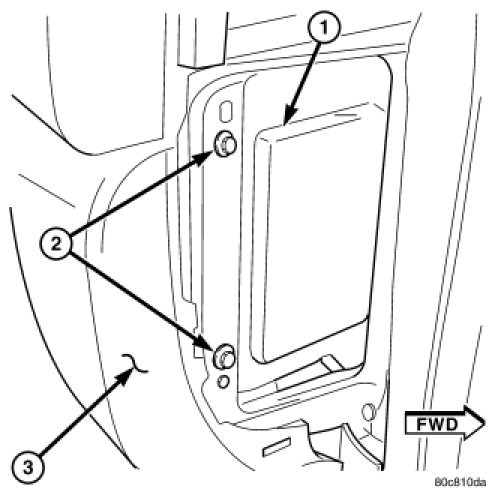

Position reservoir (1) to instrument panel.
2.

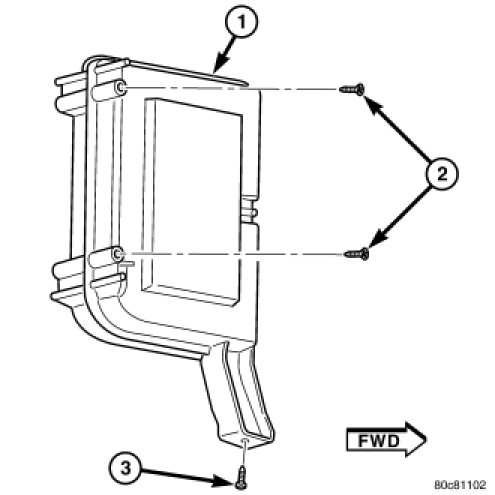

Install two horizontal mounting screws (2) but do not tighten.
3.
Install one vertically mounted screw (3). Tighten all three mounting screws to
3 Nm (20 in. lbs.).
4.
Connect vacuum line to reservoir fitting.
5.
Install glovebox assembly.
6.
Install fuse box access cover panel.
