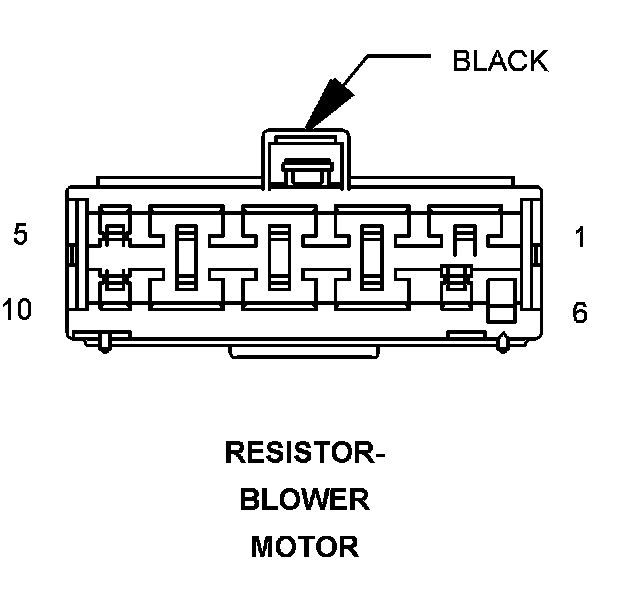

Blower Motor Resistor

Component ID: 232
Component : RESISTOR-BLOWER MOTOR

Connector:
Name : RESISTOR-BLOWER MOTOR
Color : BLACK
# of pins : 10

Pin Description Circuit
1 BLOWER MOTOR HIGH DRIVER C75 12DB/GY
2 BLOWER MOTOR HIGH DRIVER C75 12DB/GY
3 BLOWER MOTOR M2 DRIVER C73 14DB/VT
4 BLOWER MOTOR M1 DRIVER C72 16DB/OR
5 BLOWER MOTOR LOW DRIVER C71 16DB/BR
6 - -
7 - -
8 - -
9 - -
10 - -
