Cargo Lamp

Component ID: 136

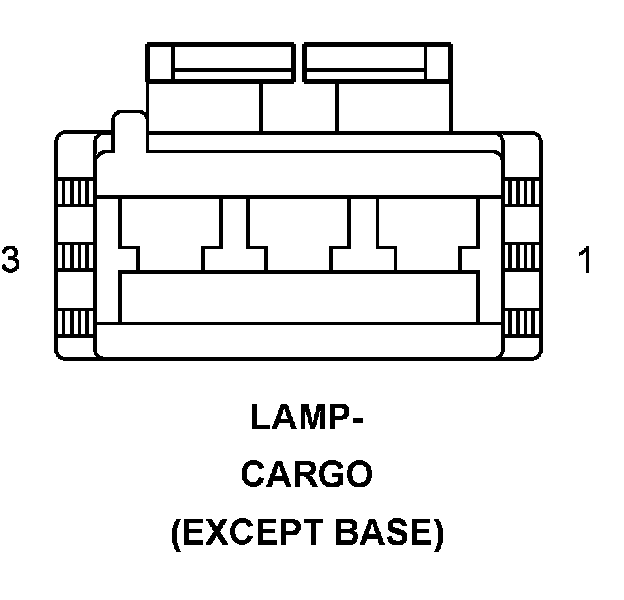

Component : LAMP-CARGO

Connector:
Name : LAMP-CARGO
Color :
# of pins : 3
Qualifier : (EXCEPT BASE)

Pin Description Circuit
1 REAR COURTESY LAMP CONTROL G773 20RD
2 FUSED B(+) A908 18RD
3 GROUND Z327 20BK/WT
