Compressor Clutch Relay
Component ID:
203
Component :

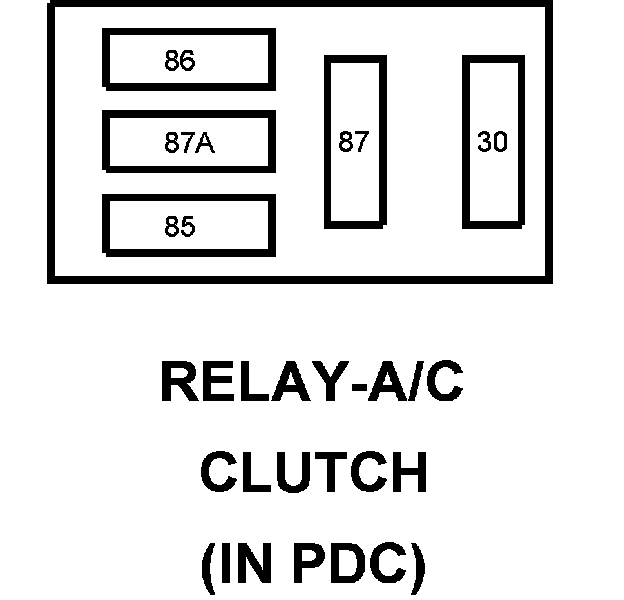

RELAY-A/C CLUTCH
Connector:
Name :
RELAY-A/C CLUTCH
Color :
# of pins :
0
Qualifier :
(IN PDC)
30
FUSED B(+)
INTERNAL
85
A/C CLUTCH RELAY CONTROL
C13 20LB/OR
86
FUSED ASD RELAY OUTPUT
K347 20BR/YL
86
FUSED IGNITION SWITCH OUTPUT (RUN-START)
F1 20PK/WT
87
A/C CLUTCH RELAY OUTPUT
C3 18DB/YL
87A
-
-
