Dome Lamp
Component ID: 139

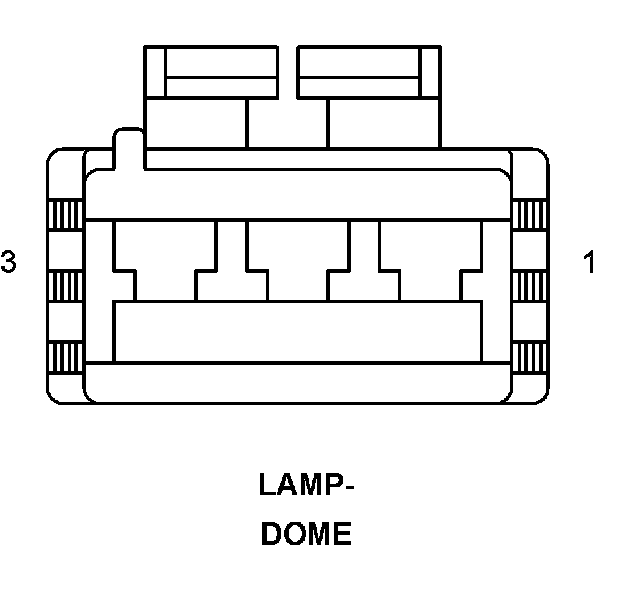

Component : LAMP-DOME
Connector:
Name : LAMP-DOME
Color :
# of pins : 3
Pin Description Circuit
1 GROUND Z327 20BK/WT
2 FUSED B(+) A908 18RD
2 COURTESY LAMP LOAD SHED M20 20YL/LB
3 GROUND Z327 20RD
3 FUSED B(+) A908 20RD
Component ID: 139
Component : LAMP-DOME
Connector:
Name : LAMP-DOME
Color :
# of pins : 3
Pin Description Circuit
1 GROUND Z327 20BK/WT
2 FUSED B(+) A908 18RD
2 COURTESY LAMP LOAD SHED M20 20YL/LB
3 GROUND Z327 20RD
3 FUSED B(+) A908 20RD
