Door Switch
Component ID:
453
Component :
SWITCH-FLIP-UP GLASS AJAR

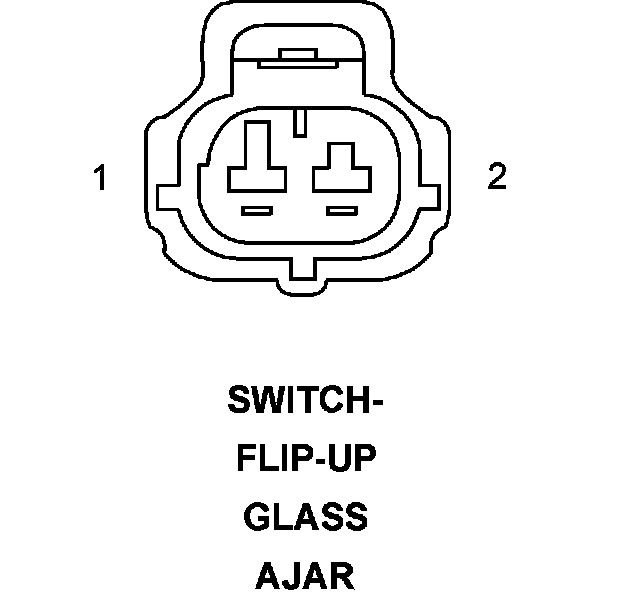

Connector:
Name :
SWITCH-FLIP-UP GLASS AJAR
Color :
# of pins :
2
Pin Description Circuit 1
FLIP-UP GLASS AJAR SWITCH SENSE
G80 20VT/YL
2
GROUND
Z213 18BK/OR
Component Location - 51
Fig. 51:
