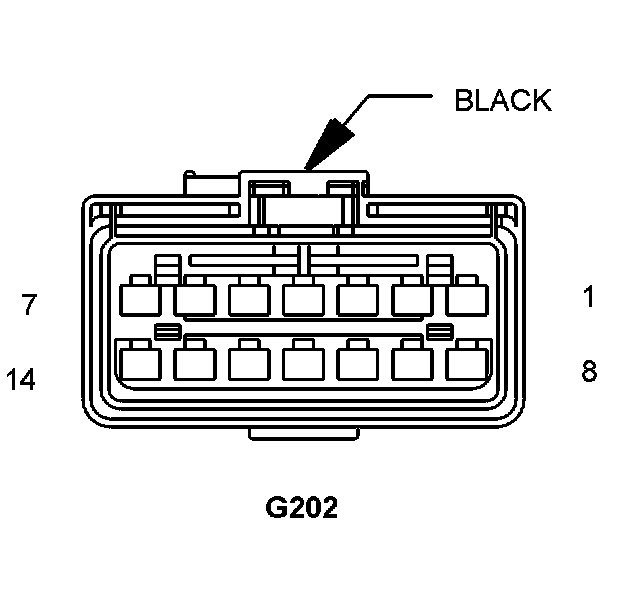

G202

Component ID: 114
Component : G202

Connector:
Name : G202
Color : BLACK
# of pins : 14

Pin Description Circuit
1 GROUND Z945 18BK
2 GROUND Z940 14BK
3 GROUND Z120 20BK/WT
4 - -
5 GROUND Z950 20BK
6 GROUND Z18 20BK/LB
7 GROUND Z10 16BK/TN
8 GROUND Z15 16BK/TN
9 GROUND Z943 14BK
10 GROUND Z944 16BK
11 GROUND Z938 20BK
12 - -
13 - -
14 GROUND Z385 20BK
