System Diagram

Component ID: 18
Component : BACKLITE-ELECTRIC HEATED

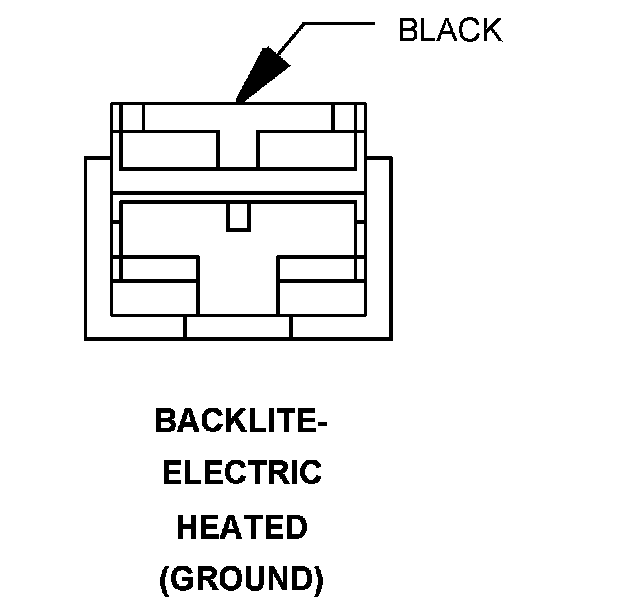

Connector:
Name : BACKLITE-ELECTRIC HEATED
Color : BLACK
# of pins : 1
Qualifier : (GROUND)

Pin Description Circuit
1 GROUND Z255 12RD

Component Location - 51

Fig. 51:

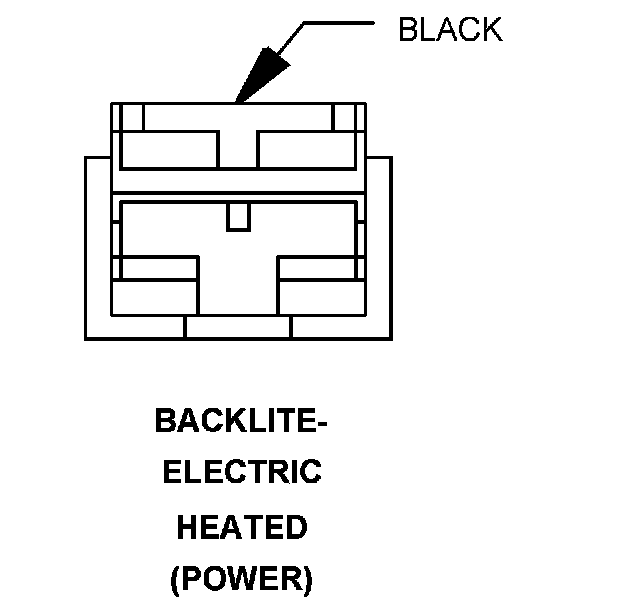

Connector:
Name : BACKLITE-ELECTRIC HEATED
Color : BLACK
# of pins : 1
Qualifier : (POWER)

Pin Description Circuit
1 FUSED REAR WINDOW DEFOGGER RELAY OUTPUT C15 12RD

Component Location - 51
