License Plate Lamp

Component ID: 145
Component : LAMP-LICENSE PLATE

Connector:

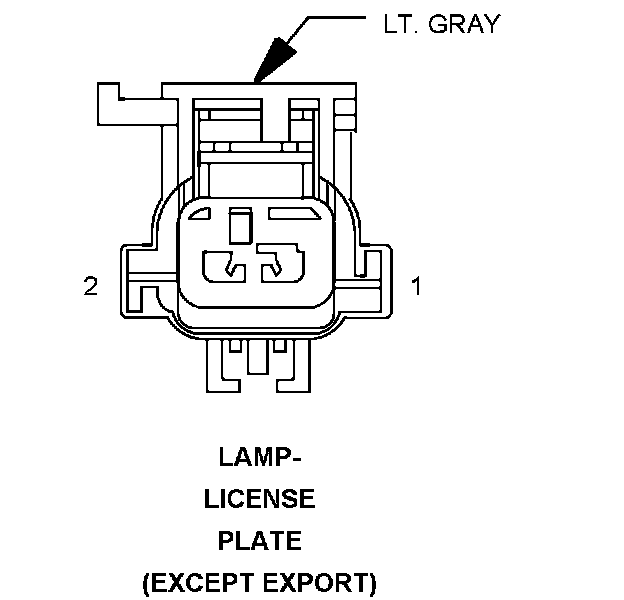

Name : LAMP-LICENSE PLATE
Color : LT GRAY
# of pins : 2
Qualifier : (EXCEPT EXPORT)




Pin Description Circuit
1 FUSED PARK LAMP RELAY OUTPUT L77 18PK/RD
2 GROUND Z934 16BK

Component Location - 49

Fig. 49:

Component Location - 51

Fig. 51:

Connector:

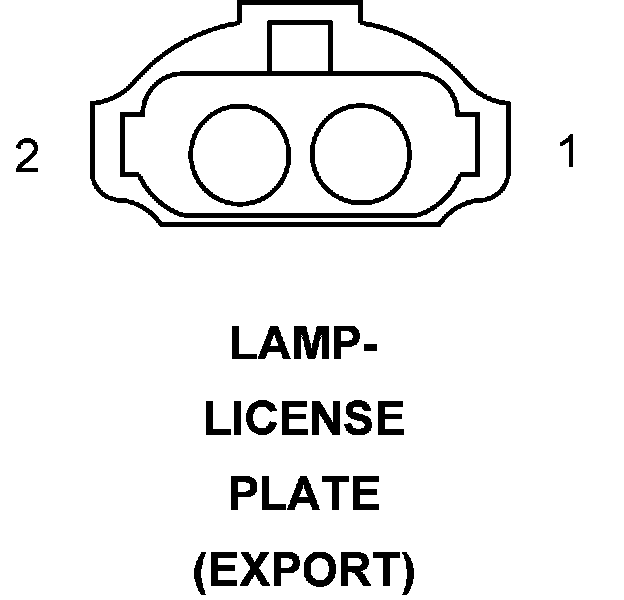

Name : LAMP-LICENSE PLATE
Color :
# of pins : 2
Qualifier : (EXPORT)




Pin Description Circuit
1 FUSED PARK LAMP RELAY OUTPUT L77 18PK/RD
2 GROUND Z213 18BK/OR

Component Location - 49

Fig. 49:

Component Location - 51

Fig. 51:
