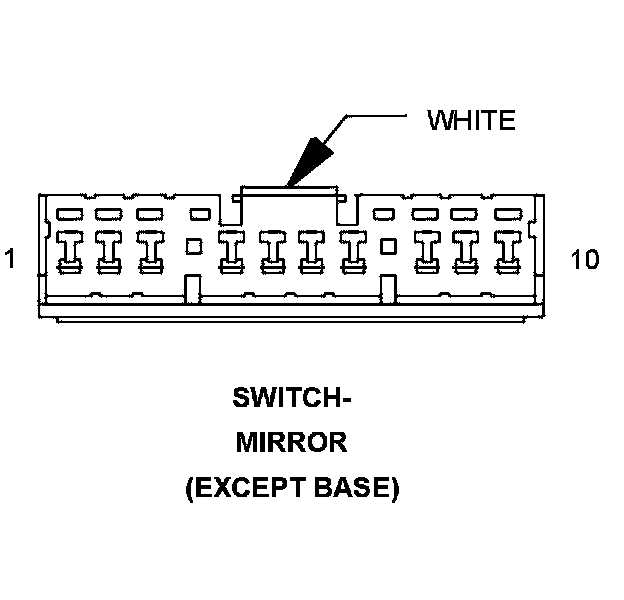

Power Mirror Switch




Component ID: 463
Component : SWITCH-MIRROR

Connector:
Name : SWITCH-MIRROR
Color : WHITE
# of pins : 10
Qualifier : (EXCEPT BASE)




Pin Description Circuit
1 LEFT MIRROR LEFT DRIVER P75 20TN/LG
2 LEFT MIRROR UP DRIVER P71 20TN/LG
3 GROUND Z999 20BK
3 GROUND Z998 20BK
4 FOLDING MIRROR RETURN P110 20LG/WT
5 FUSED IGNITION SWITCH OUTPUT (RUN) F302 20GY/PK
6 MIRROR COMMON DRIVER P76 20TN/LB
7 FOLDING MIRROR FEED P99 20LG/LB
8 - -
9 RIGHT MIRROR UP DRIVER P72 20TN/GY
10 RIGHT MIRROR LEFT DRIVER P74 20TN/OR

Component Location - 42

Fig. 42:
