Motor-Power Window-Passenger




Component ID: 188

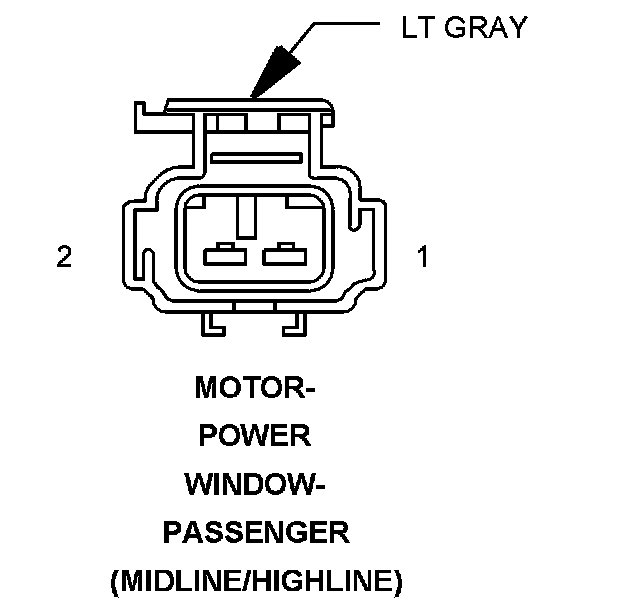

Component : MOTOR-POWER WINDOW-PASSENGER

Connector:
Name : MOTOR-POWER WINDOW-PASSENGER
Color : LT GRAY
# of pins : 2
Qualifier : (MIDLINE/HIGHLINE)




Pin Description Circuit
1 PASSENGER FRONT WINDOW DRIVER DOWN Q22 16OR/VT
Pin Description Circuit
1 DRIVER FRONT WINDOW DRIVER DOWN Q22 16OR/VT
2 RIGHT FRONT WINDOW DRIVER UP Q12 16OR/BR
2 RIGHT FRONT WINDOW DRIVER UP Q12 16OR/BR

Component Location - 42

Fig. 42:
