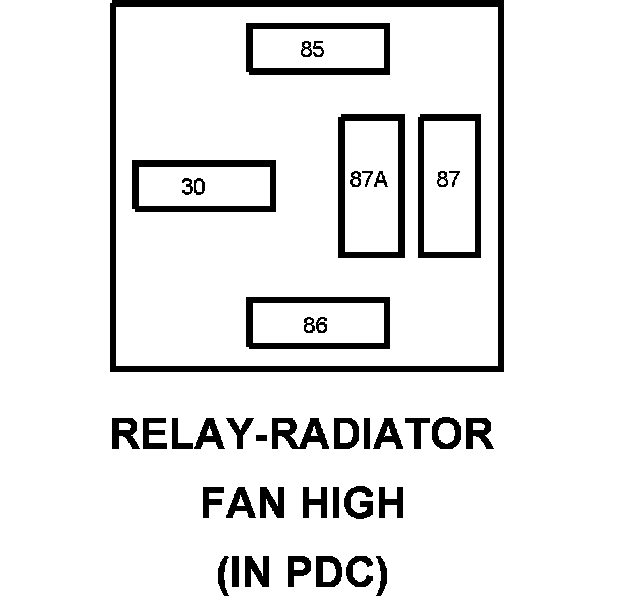

Relay-Radiator Fan High
Component ID:
221
Component :
RELAY-RADIATOR FAN HIGH
Connector:
Name :
RELAY-RADIATOR FAN HIGH
Color :
# of pins :
0
Qualifier :
(IN PDC)
30
FUSED B(+)
INTERNAL
85
HIGH SPEED RAD FAN RELAY CONTROL
N112 20DB/OR
86
FUSED ASD RELAY OUTPUT
K347 20BR/YL
86
FUSED IGNITION SWITCH OUTPUT (RUN-START)
INTERNAL
87
HIGH SPEED RAD FAN RELAY OUTPUT
N24 12DG/DB
87A
-
-
