Shifter A/T

Component ID: 15
Component : ASSEMBLY-SHIFT LEVER

Connector:

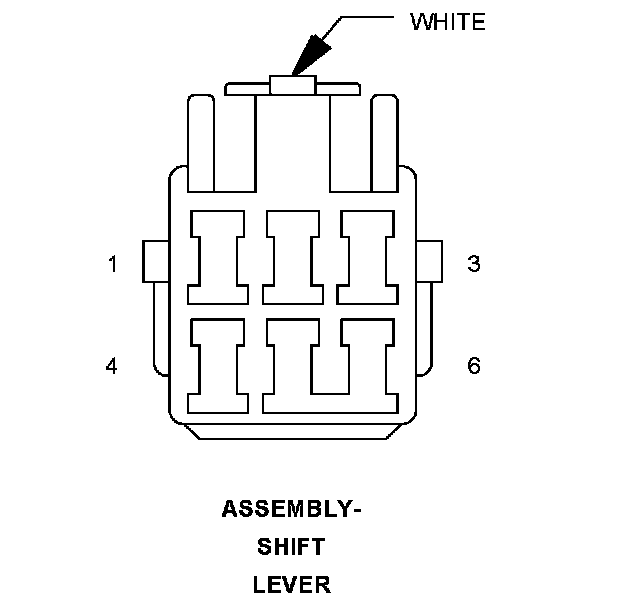

Name : ASSEMBLY-SHIFT LEVER
Color : WHITE
# of pins : 6

Pin Description Circuit
1 PANEL LAMPS DRIVER E2 20OR/BR
2 GROUND Z936 20BK
3 TOW/HAUL OVERDRIVE OFF SWITCH SENSE T6 20DG
4 GROUND Z936 20BK
5 FUSED IGNITION SWITCH OUTPUT (RUN) F22 20PK/TN
6 SECONDARY BRAKE SWITCH SIGNAL B15 20DG/WT
6 BRAKE SWITCH NO. 1 SIGNAL B15 20DG/WT

Component Location - 37

Shifter A/T

Fig. 37:
