Throttle Body

Component ID: 481

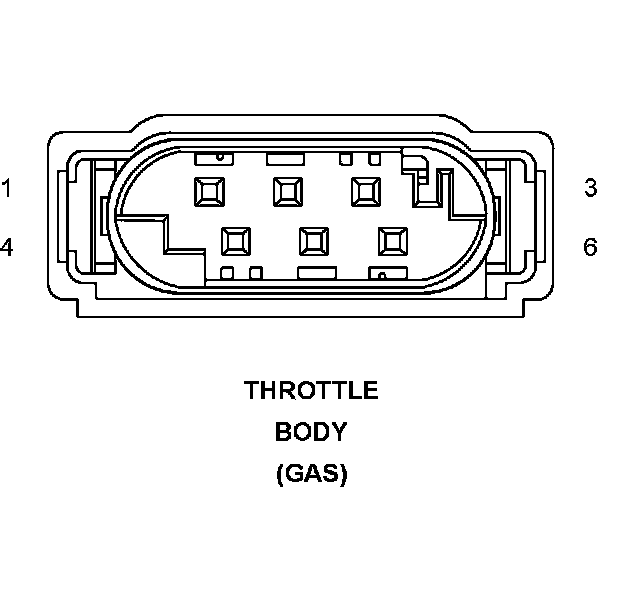

Component : THROTTLE BODY

Connector:
Name : THROTTLE BODY
Color :
# of pins : 6
Qualifier : (GAS)

Pin Description Circuit
1 ETC MOTOR (+) K124 20DB/GY
2 5 VOLT SUPPLY F855 20PK/YL
3 TP SENSOR RETURN K922 20BR/DB
4 ETC MOTOR (-) K126 20DB/LG
5 TP NO. 2 SIGNAL K122 20BR/DG
6 TP NO. 1 SIGNAL K22 20BR/OR
