Installation

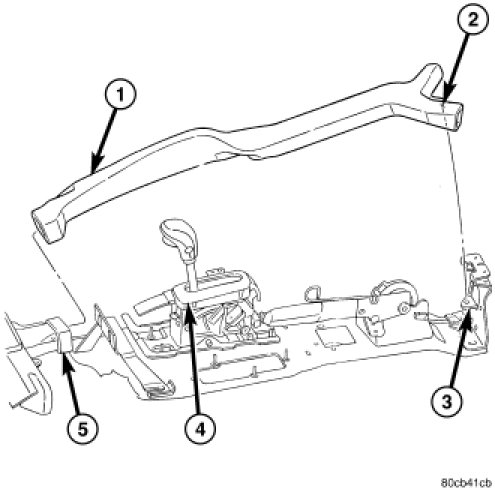

INSTALLATIONNOTE: Typical rear floor heat duct shown.
1.
Position the rear floor heat duct (1) into the vehicle.
2.
Connect the rear floor heat duct to the floor distribution duct (5) located in front of the gear shift lever assembly (4).
3.
Install the push-pin retainer (2) that secures the rear floor heat duct to the floor console bracket (3).
4.
Install the floor console.
