Removal

REMOVAL






NOTE: LHD model shown. RHD model similar.

1. Remove the HVAC housing assembly and place it on a workbench.

2. Disassemble the HVAC housing.

NOTE: If the foam insulator around the A/C evaporator is deformed or damaged, the insulator must be replaced.

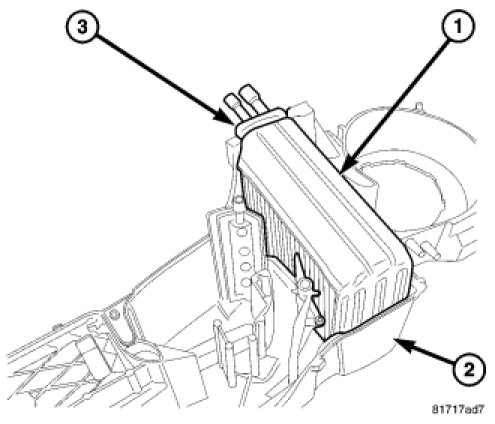

3. Carefully lift the A/C evaporator (1) and the foam insulator out of the lower half of the HVAC housing (2).

NOTE: If the rubber seal around the evaporator tubes is deformed or damaged, the seal must be replaced.

4. If required, remove the rubber seal (3) from around the evaporator tubes.
