Installation

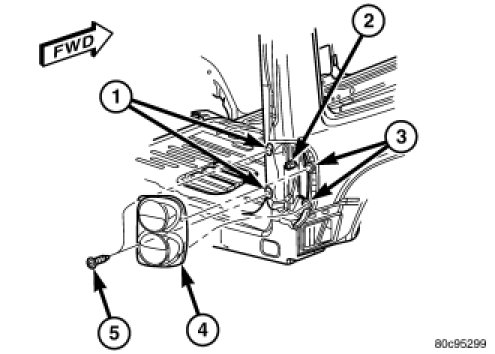

LAMP




1. Install two new plastic grommets (3) into the quarter panel.

2. Position the rear lamp unit (4) to the quarter panel.

3. Reconnect the wire harness connector (2) to the lamp socket plate connector.

4. Align the two ball studs on the outboard side of the rear lamp housing with the two plastic grommets in the quarter panel.

5. Using hand pressure, push firmly and evenly on the outboard side of the lamp until the two ball studs snap into the plastic grommets.

6. Install and tighten the two screws (5) that secure the inboard side of the lamp housing to the plastic nuts (1) in the side jamb of the tailgate opening. Tighten the screws to 2 Nm (20 in. lbs.).

7. Reconnect the battery negative cable.
