Installation

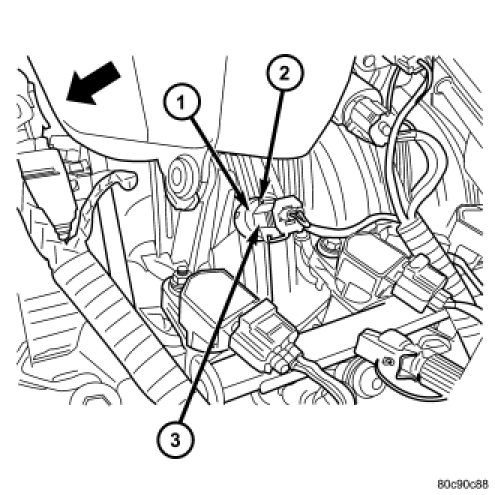

INSTALLATIONThe intake manifold air temperature (IAT) sensor (1) is installed into the left side of intake manifold plenum.
1.
Check condition of sensor O-ring.
2.
Clean sensor mounting hole in intake manifold.
3.
Position sensor into intake manifold and rotate clockwise until past release tab (2).
4.
Install electrical connector (3).
