Installation

INSTALLATION

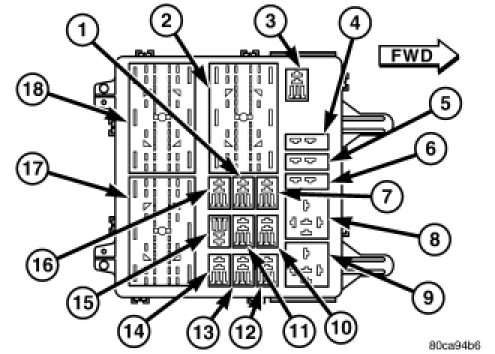

NOTE: Refer to the fuse and relay layout map on the inside of the junction block (JB) cover for EBL relay location.

1. Position the EBL relay (8) into the proper receptacle of the JB.

2. Align the EBL relay terminals with the terminal cavities in the JB receptacle and push down firmly on the relay until the terminals are fully seated.

3. Install the cover onto the JB.

4. Reconnect the negative battery cable.
