Removal

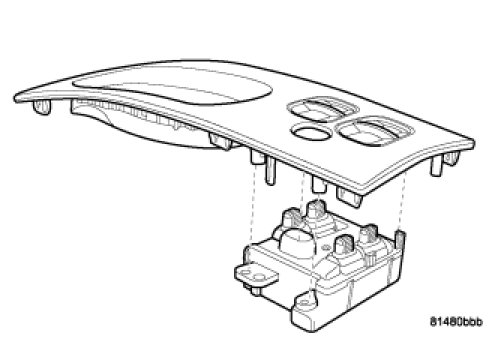

REMOVALFRONT 1.
Disconnect and isolate the battery negative cable.
2.
Remove the shift bezel.
3.
Remove the mounting fasteners and switch.
4.
Disconnect electrical harness connector.
REAR 1.
Disconnect and isolate the battery negative cable.
2.
Using a trim stick, gently pry the switch (3) from the console (1).
3.
Disconnect electrical harness connector (2).
