Removal
REMOVAL 1.

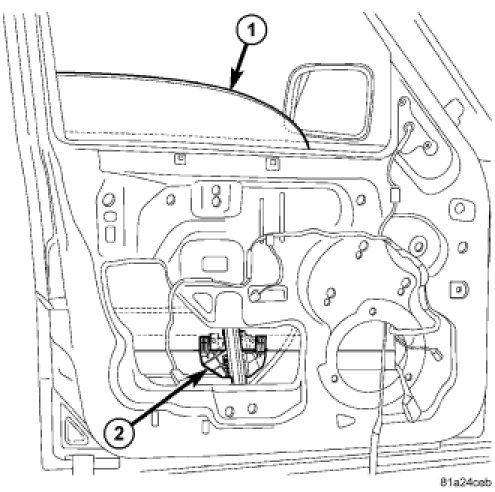

Place the glass (1) in the position shown to gain access to the glass connections (2) from behind the waterdam.
2.
Disconnect and isolate battery negative cable.
3.
Remove the waterdam. Refer to Front Door Panel.
4.
Depress the lock tabs (2) and release the glass (3) from the regulator (1) lift plate.
5.
Rotate the top of the glass toward the front and remove the glass from the window opening.
