Installation
INSTALLATION 1.

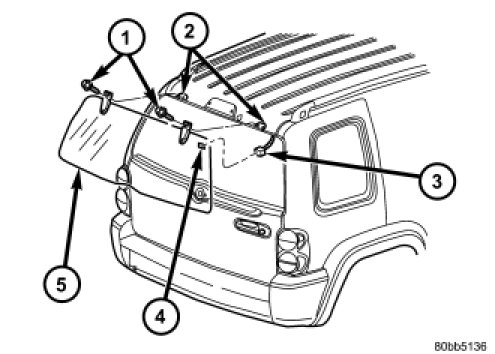

Install the flip-up glass, pushing it as far up as it can go and loosely install the hinge bolts (1).
2.
Connect the electrical connectors (3).
3.
Adjust flip-up glass fit if necessary, making sure there are equal gaps on both sides of the glass while pushing up on the glass and tighten the hinge bolts to 7 Nm (60 in. lbs.).
4.

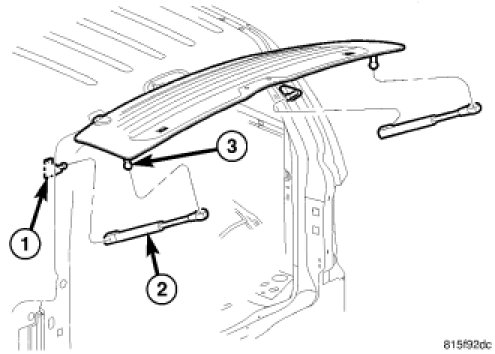

Install the support cylinders (2).
