Installation






INSTALLATION

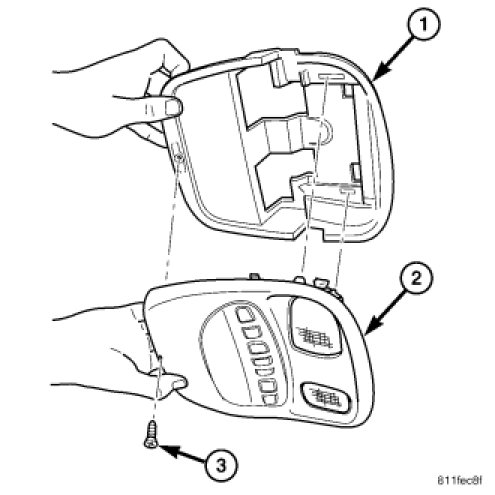

1. Position the overhead console (2) in the vehicle and connect the wire harness connectors.

2. Connect the Electronic Overhead Module (EOM), courtesy lamps and power sunroof switch electrical connectors, if equipped.

3. Grasp the sides of the overhead console (2) and push straight up evenly to engage the two snap clips at the rear of the unit.

4. Install the overhead console retaining screw (3), located in the front of console near the windshield. Torque the screw to 1 Nm (10 in. lbs.).

5. Connect the battery negative cable.
