Gear Sensor/Switch, Transfer Case
Component ID:
427
Component :
SENSOR-TRANSFER CASE POSITION

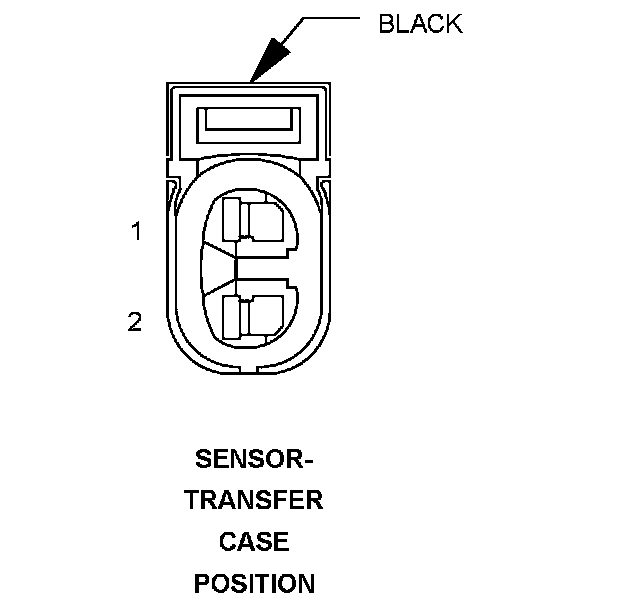

Connector:
Name :
SENSOR-TRANSFER CASE POSITION
Color :
BLACK
# of pins :
2
Pin Description Circuit 1
TRANSFER CASE POSITION SENSOR INPUT
K77 20BR/WT
2
SENSOR GROUND
K300 20BR
Component Location - 5
Fig. 5:
Component Location - 7
Fig. 7:
Component Location - 17
Fig. 17:
Component Location - 18
Fig. 18:
