Installation

INSTALLATION

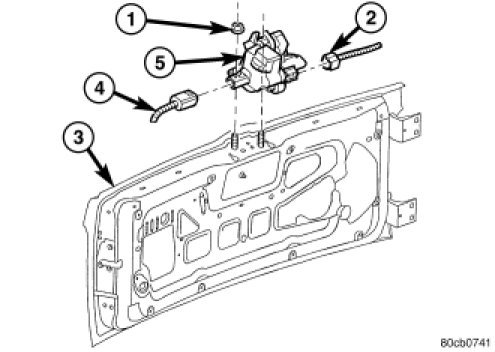

1. Install the latch assembly (5).

2. Install the nuts (1) and tighten to 12 Nm (9 ft. lbs.).

3. Connect the electrical connectors (2 and 4).

4. Adjust the latch to achieve the best glass fit.

5. Install the trim panel (1).
