Installation

INSTALLATION




1. Install a new rubber grommet seal/filter screen unit into the washer pump mounting hole in the washer reservoir. Always use a new rubber grommet seal/filter screen on the reservoir.

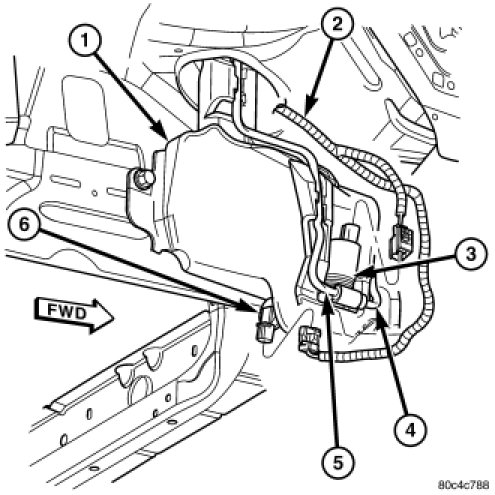

2. Position the inlet nipple of the washer pump (3) to the rubber grommet seal/filter screen in the washer reservoir (1).

3. Using hand pressure, press firmly and evenly downward on the washer pump/motor unit until the inlet nipple is fully seated in the rubber grommet seal/filter screen in the pump mounting hole of the reservoir.

4. Align the top of the washer pump/motor housing with the receptacle in the washer reservoir.

5. Using hand pressure, press firmly and evenly on the top of washer pump/motor unit until the motor housing snaps into the reservoir receptacle.

6. Reconnect the headlamp and dash wire harness (2) connector for the washer pump/motor unit to the connector receptacle on the top of the motor housing.

7. Reconnect the front and rear washer hoses to the two barbed pump outlet nipples. Be certain that the hose in the trough on the reservoir located behind the pump is connected to the rear (black) nipple, and the hose in front of the pump is connected to the front (blue) nipple.

8. Reposition the forward end of the front wheelhouse splash shield to the inner fender panel and the front fascia.

9. Reinstall the plastic push-in fasteners that secure the front wheelhouse splash shield to the inner fender panel and the front fascia.

10. Lower the vehicle.

11. Reconnect the battery negative cable.

12. Refill the washer reservoir with the washer fluid siphoned from the reservoir during the removal procedure.
