Brake and/or Accelerator Pedals - Installation
INSTALLATION 1.

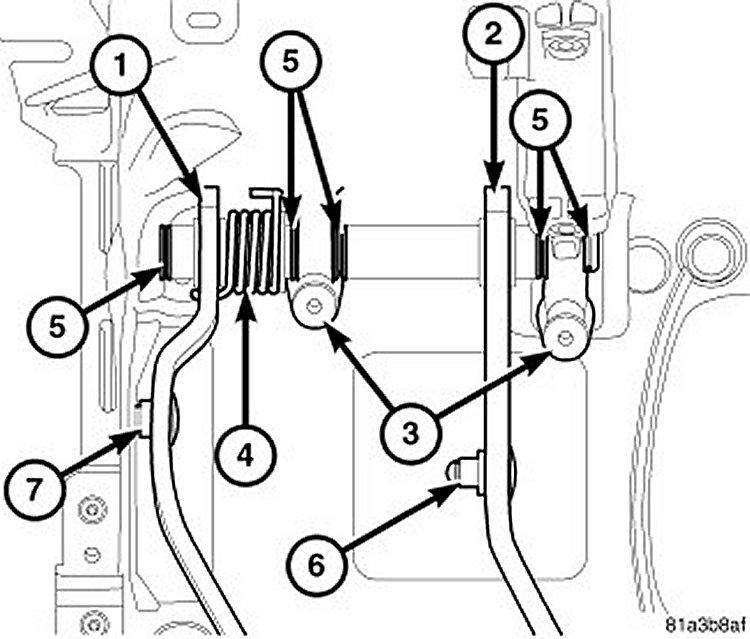

Install new bushings (5) in pedal and IP structure lubricate all bushings and shaft with multi-purpose grease.
2.
Position the shaft in IP structure and install the shaft mounting bolts (3).
3.
Install new retaining clip.
4.
Install the instrument panel.
Service and Repair 5.
Install and adjust the brake lamp switch.
6.
Install negative battery cable.
