Installation






INSTALLATION

NOTE: LHD model shown in illustrations. RHD model similar.

PASSENGER SIDE

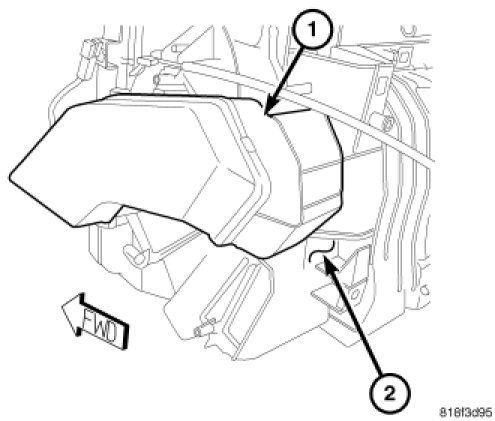

1. Connect the floor duct (1) to the passenger side of the air distribution housing (2). Make sure the duct is fully engaged to the housing.

2. Install the HVAC housing assembly into the instrument panel.

3. Install the instrument panel.

DRIVER SIDE

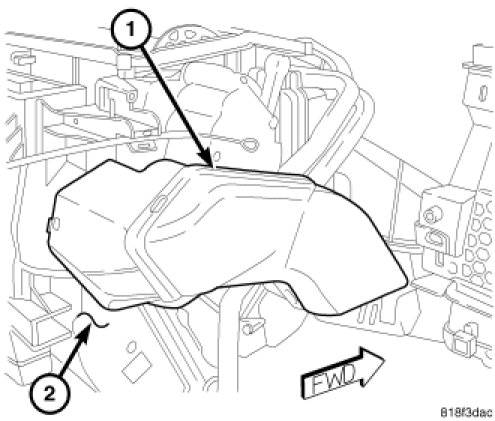

NOTE: Illustration shown with instrument panel removed for clarity.

4. Connect the floor duct (1) to the driver side of the air distribution housing (2). Make sure the duct is fully engaged to the housing.

5. Install the steering column opening cover.

6. Reconnect the negative battery cable.
