Air Inlet Screen Installation

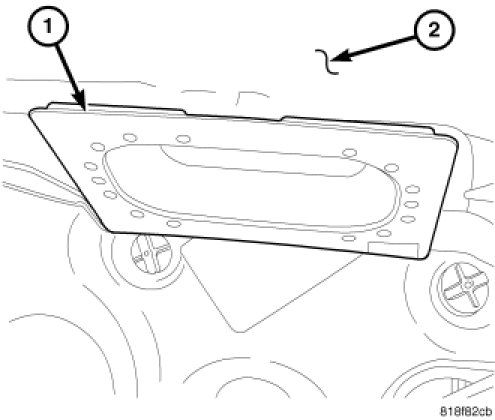

SCREEN-AIR INLET





NOTE: LHD model shown. RHD model similar.

1. Position the air inlet screen (1) to the passenger compartment side of the cowl panel (2) and engage the retaining tabs that secure the screen to the cowl. Make sure the retaining tabs are fully engaged.

NOTE: Make sure the air inlet screen retaining tabs are fully engaged. Failure to fully engage the screen to the cowl and dash panel will result in a leak.

2. Push the air inlet screen upward to engage the retaining tabs that secure the screen to the dash panel. Make sure the retaining tabs are fully engaged.

3. Install the HVAC housing assembly.
