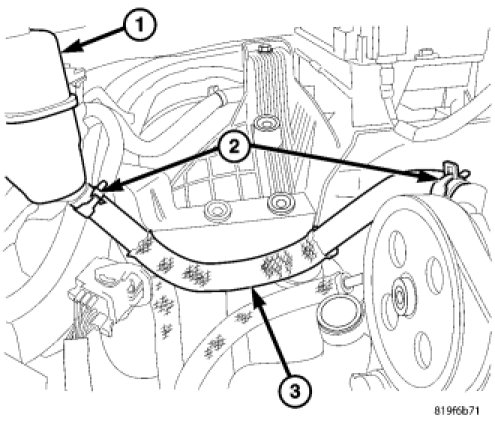

Supply Hose
SUPPLY HOSE 1.
Install the supply hose (3) to the vehicle.
2.
Install the supply hose at the pump (2).
3.
Install the supply hose to the reservoir (2).
4.
Fill and bleed the power steering system.
5.
Check for leaks.
6.
Install the air box assembly.
