Installation






INSTALLATION

1. Install the knuckle to the ball joint studs.
2. Install the upper ball joint nut and cotter pin. Tighten to 95 Nm ( 70 ft. lbs.)
3. Install the lower ball joint nut and cotter pin. Tighten to 95 Nm ( 70 ft. lbs.)





4. Install the wheel speed sensor (1) through the hole in the brake shield (2).




5. Install the axle shaft nut (if equipped). Tighten to 136 Nm (100 ft.lbs).
6. Install the wheel speed sensor (1) in the hub/bearing and tighten the bolt (2) to 4-6 Nm (34-50 in. lbs.).




7. Install the disc brake rotor (3).




8. Install the disc brake caliper (4) and tighten the caliper adaptor mounting bolts (3) to

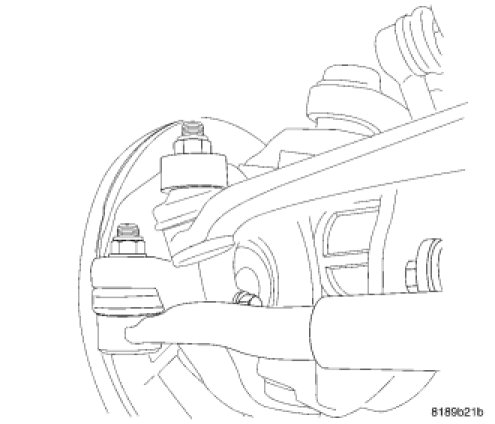

9. Install the drag link to the knuckle and install the mounting nut. Tighten to 74 Nm (55 ft-lbs). Right side only.
10. Install the drag link to the knuckle and install the mounting nut. Tighten to 74Nm (55 ft-lbs).
11. Install the tire and wheel assembly.
12. Remove the support and lower the vehicle.
