Installation

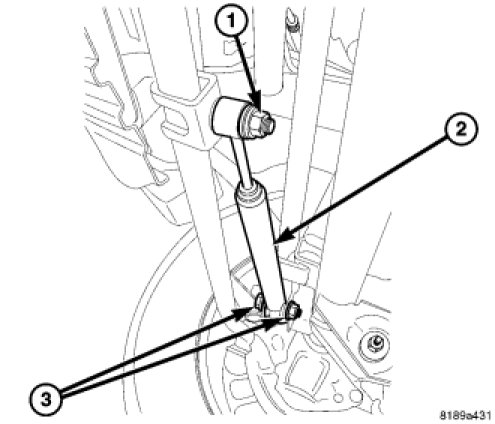

INSTALLATION 1.
Install the
steering damper (2) to the axle bracket and
tie rod.
2.
Install the
steering damper bolt (3) in the axle bracket and tighten nut to
68 Nm (50 ft. lbs.).
3.
Install the
steering damper bolt (3) in the
tie rod tube (1) and tighten nut to
68 Nm (50 ft. lbs.).
4.
Remove the support and lower the vehicle.
