Installation
INSTALLATION 1.
Lubricate new bearing with Mopar high temperature bearing grease or equivalent.
2.

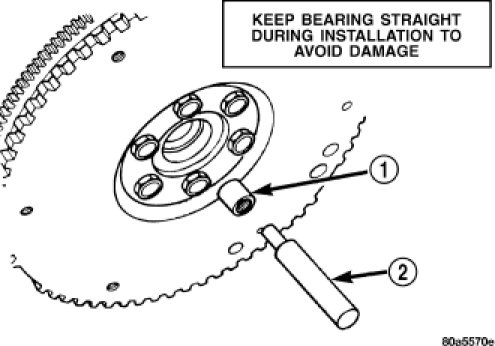

Start new
pilot bearing (1) into crankshaft by hand. Then seat bearing with clutch alignment tool (2).
3.
Install
clutch disc and pressure plate.
4.
Install transmission.
