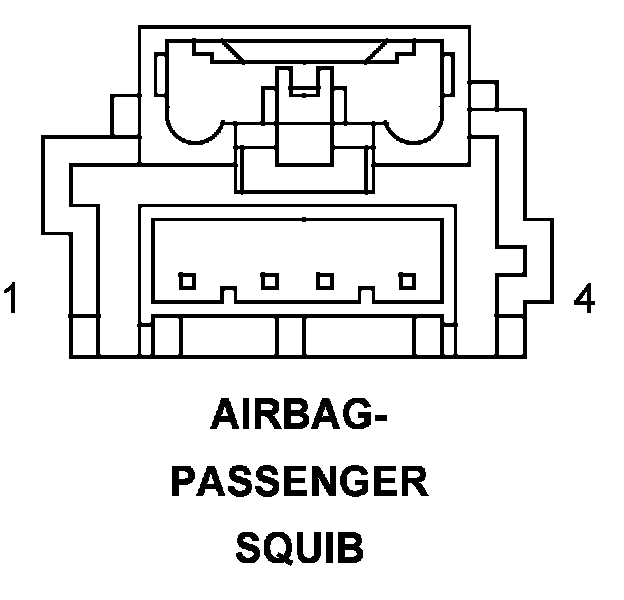

Airbag-Passenger Squib

Component ID: 10
Component : AIRBAG-PASSENGER SQUIB

Connector:
Name : AIRBAG-PASSENGER SQUIB
Color :
# of pins : 4

Pin Circuit Description
1 R44 20LB/OR PASSENGER SQUIB 1 LINE 1
2 R42 20LB/BR PASSENGER SQUIB 1 LINE 2
3 R62 20LB/VT PASSENGER SQUIB 2 LINE 2
4 R64 20LB/WT PASSENGER SQUIB 2 LINE 1

Component Location - 42
