Installation







INSTALLATION - 3.7L

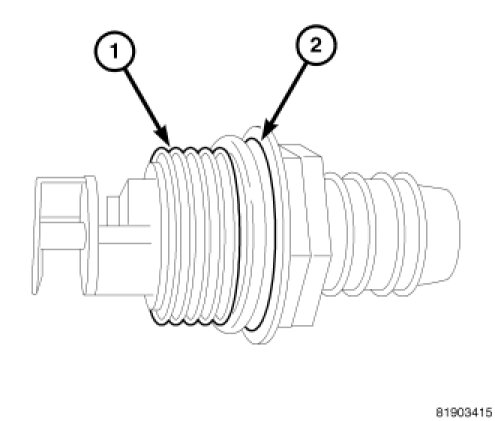

1. Check condition of PCV valve rubber O-ring (2).




2. Clean fitting (2).
3. Install PCV valve (3) into fitting (2).




4. Install PCV line (1) and rubber connector to valve.
