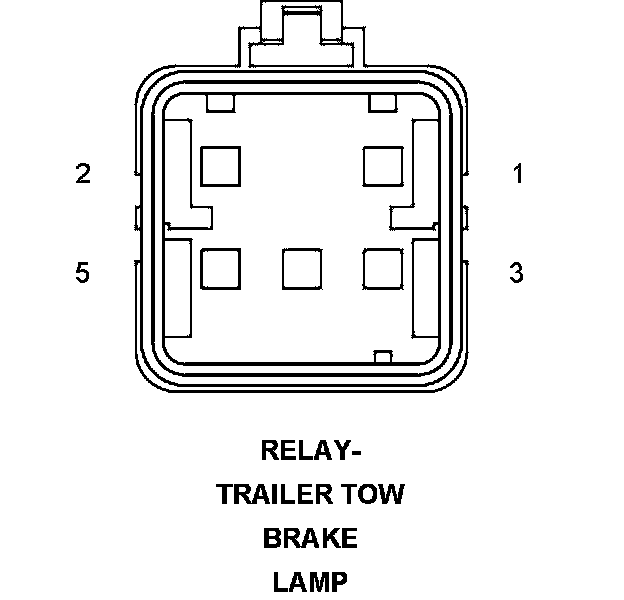

Relay-Trailer Tow Brake Lamp
Component ID:
301
Component :
RELAY-TRAILER TOW BRAKE LAMP
Connector:
Name :
RELAY-TRAILER TOW BRAKE LAMP
Color :
# of pins :
5
Gender :
FEMALE
Pin Circuit Description 1
A100 18RD/VT
FUSED B(+)
2
Z960 18BK/LB
GROUND
3
L55 20WT/OR
STOP LAMP CONTROL OUTPUT
4
L651 18WT/LG
LEFT TRAILER TOW STOP LAMP RELAY OUTPUT
5
L650 18WT/DG
RIGHT TRAILER TOW STOP LAMP RELAY OUTPUT
Component Location - 68
