Fuel Pressure Sensor/Switch
Component ID:
476
Component :
SENSOR-FUEL PRESSURE

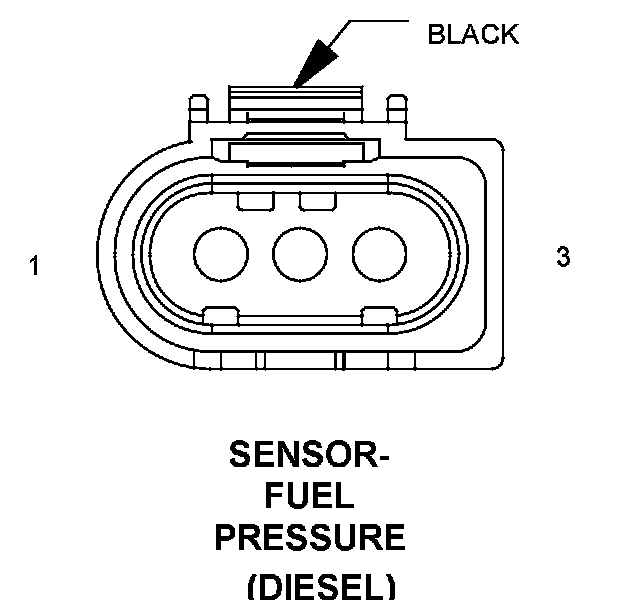

Connector:
Name :
SENSOR-FUEL PRESSURE
Color :
BLACK
# of pins :
3
Qualifier :
(DIESEL)
Pin Circuit Description 1
K359 20GY/BR
FUEL PRESSURE SENSOR GROUND
2
K181 20DG/VT
FUEL PRESSURE SENSOR SIGNAL
3
K350 20RD/WT
FUEL PRESSURE SENSOR 5 VOLT SUPPLY
Component Location - 30
