Wastegate
Component ID:
229
Component :

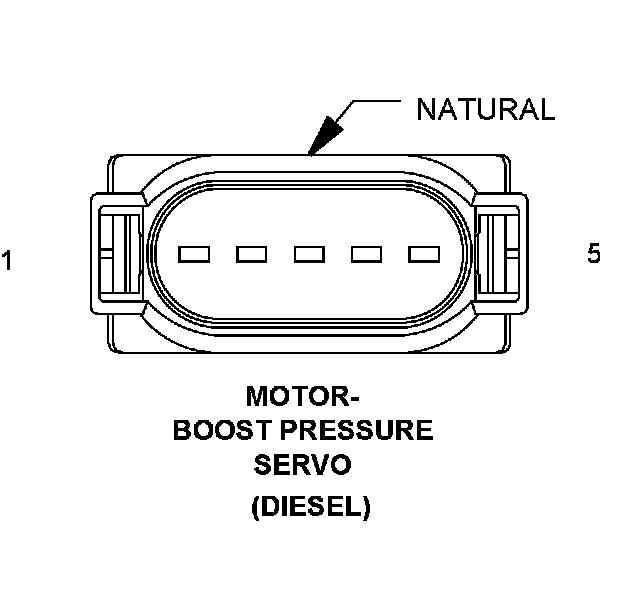

MOTOR-BOOST PRESSURE SERVO
Connector:
Name :
MOTOR-BOOST PRESSURE SERVO
Color :
NATURAL
# of pins :
5
Qualifier :
(DIESEL)
Pin Circuit Description 1
A15 18RD/DG
FUSED ASD RELAY OUTPUT
2
Z42 18BR
GROUND
3
-
-
4
X635 20GY/DG
BOOST PRESSURE SERVO MOTOR CONTROL
5
-
-
Component Location - 30
