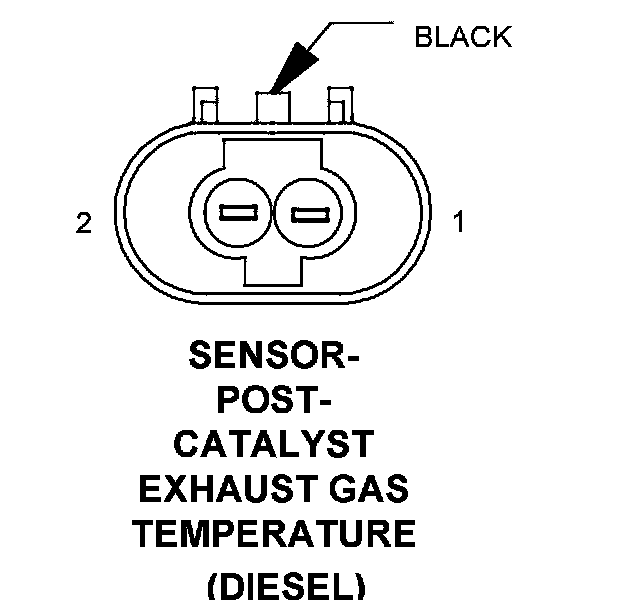

Sensor-Post-Catalyst Exhaust Gas Temperature
Component ID:
507
Component :
SENSOR-POST-CATALYST EXHAUST GAS TEMPERATURE
Connector:
Name :
SENSOR-POST-CATALYST EXHAUST GAS TEMPERATURE
Color :
BLACK
# of pins :
2
Qualifier :
(DIESEL)
Pin Circuit Description 1
K915 20BR/WT
POST-CATALYST EXHAUST GAS TEMPERATURE GROUND
2
K353 20YL/WT
POST-CATALYST EXHAUST GAS TEMPERATURE SIGNAL
