Manifold Pressure/Vacuum Sensor: Locations




Component ID: 480
Component : SENSOR-INLET AIR PRESSURE

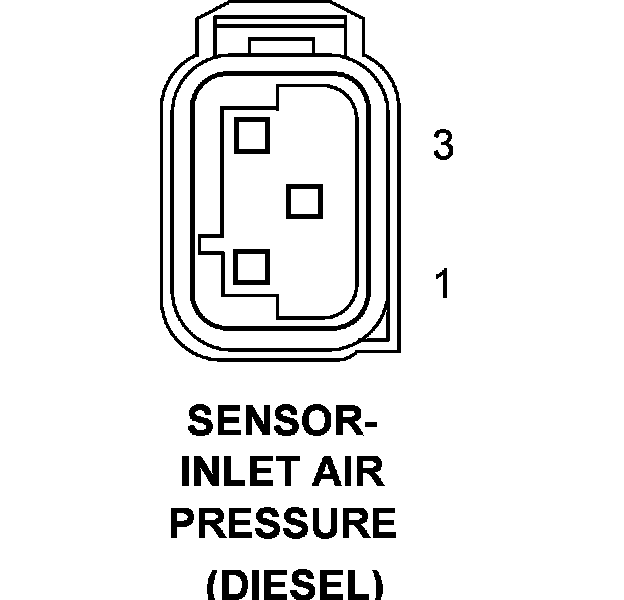

Connector:
Name : SENSOR-INLET AIR PRESSURE
Color :
# of pins : 3
Qualifier : (DIESEL)




Pin Circuit Description
1 K900 20BR/RD SENSOR GROUND
2 K68 20RD/BL INLET AIR PRESSURE SENSOR SIGNAL
3 K668 20BR/BK INLET AIR PRESSURE SENSOR 5 VOLT SUPPLY

Component Location - 31
