Installation
INSTALLATION - 3.0L DIESEL 1.
Clean
EGR cooler sealing surfaces.
2.

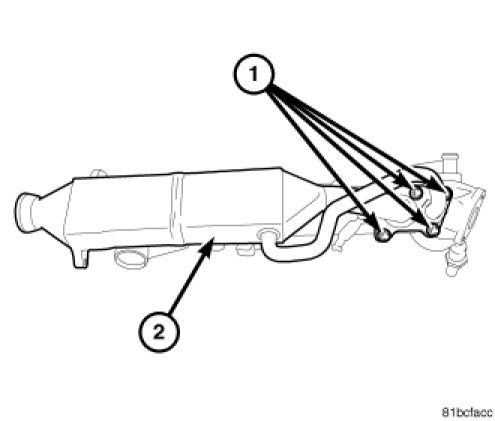

Install the
EGR cooler (2) and the 4 front EGR cooler retaining bolts (1).
3.

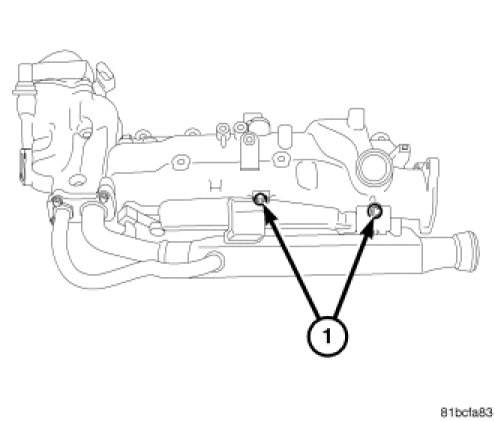

Install the 2 upper
EGR cooler bolts (1).
4.
Install the left intake manifold
Intake Manifold - Installation.
5.
Install engine cover.
6.
Connect the negative battery cable.
