Left

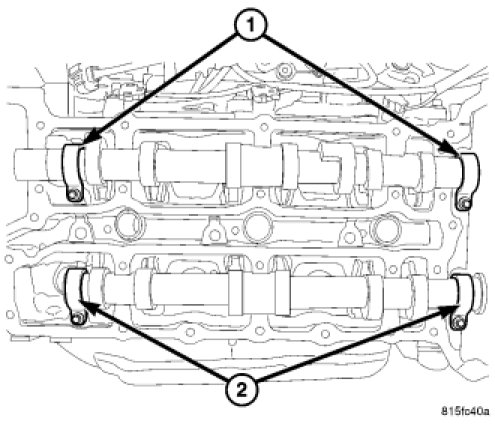

LEFTCamshaft retainers
9 Nm (80 in. lbs.)

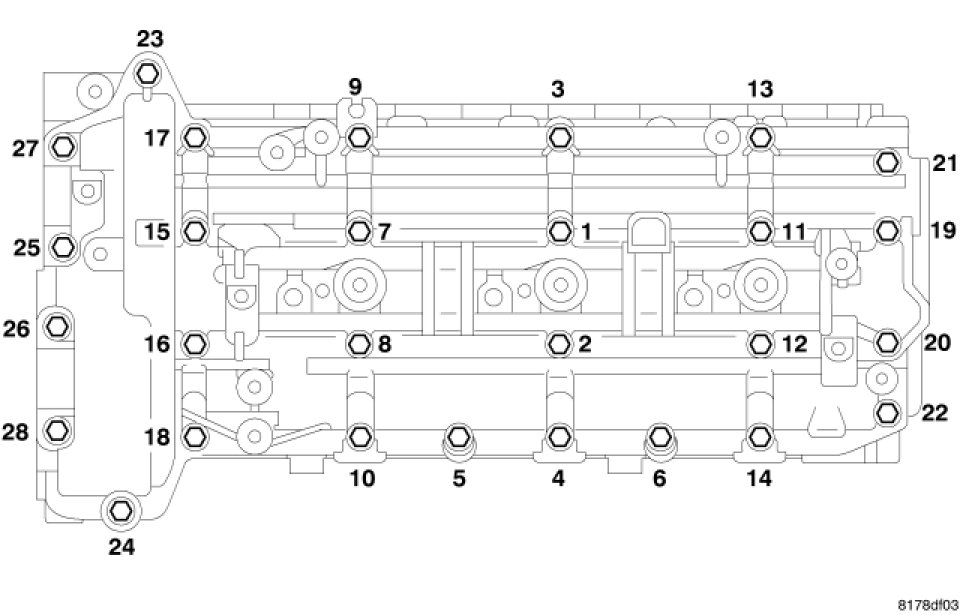

CAUTION: The cylinder head cover bolts are different lengths. Do not use the wrong length bolts or engine damage may result.Tighten cylinder head cover bolts in sequence, first to 4 Nm (35 in. lbs.), and then repeat the sequence to 8.4 Nm (75 in. lbs).
