Left







LEFT

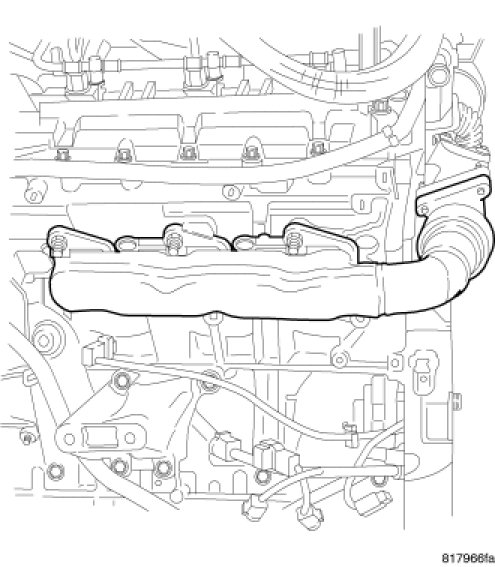

Exhaust manifold to cylinder head 25 Nm ( 222 in. lbs.)

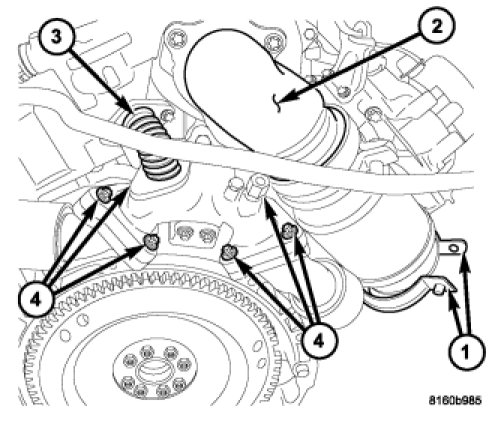

Exhaust elbow to turbocharger bolts 20 Nm (177 in. lbs.) +90°

Turbocharger heat shield 10 Nm ( 88 in. lbs.).
