Lamp-High Intensity Discharge-Right

Component ID: 183

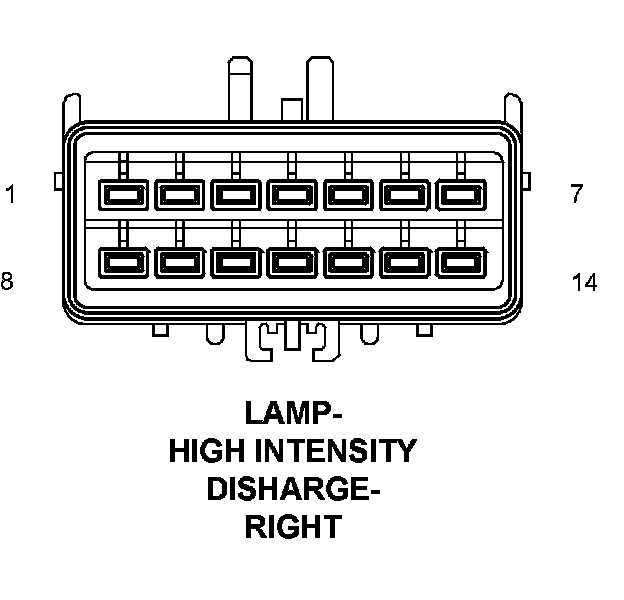

Component : LAMP-HIGH INTENSITY DISCHARGE-RIGHT

Connector:
Name : LAMP-HIGH INTENSITY DISCHARGE-RIGHT
Color :
# of pins : 14




Pin Circuit Description
1 L34 18WT/GY RIGHT HIGH BEAM DRIVER
2 L60 20WT/TN RIGHT FRONT TURN SIGNAL CONTROL
3 L778 20WT/LB RIGHT FRONT PARK LAMP DRIVER
4 L304 18OR/WT RIGHT HID LAMP DRIVER
5 Z904 16BK GROUND
6 D55 20WT/OR CAN B BUS (+)
7 D54 20WT CAN B BUS (-)
8 L960 20WT/DG HEADLAMP LEVELING SENSOR SIGNAL
9 L963 20WT/DB HEADLAMP LEVELING SENSOR SIGNAL
10 L961 20WT HEADLAMP LEVELING SENSOR 5 VOLT SUPPLY
11 L962 20WT/BR HEADLAMP LEVELING SENSOR RETURN
12 D503 20WT/OR LIN LIGHTING
13 F921 20PK/YL FUSED RUN RELAY OUTPUT
14 Z919 16BK/LB GROUND
