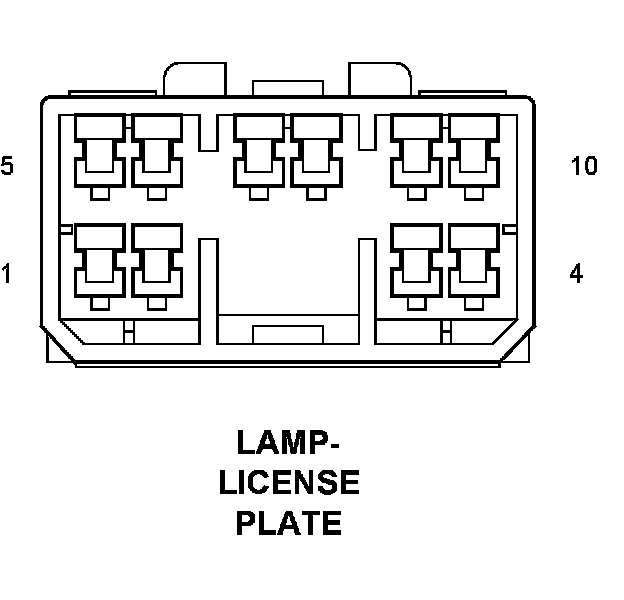

Lamp-License Plate

Component ID: 184
Component : LAMP-LICENSE PLATE

Connector:
Name : LAMP-LICENSE PLATE
Color :
# of pins : 10

Pin Circuit Description
1 L777 20WT/VT FUSED PARK LAMP RELAY OUTPUT
2 Z800 20BK GROUND
3 Q80 20OR/VT FLIP-UP GLASS SWITCH SENSE
4 - -
5 - -
6 - -
7 - -
8 - -
9 - -
10 - -

Component Location - 74
