Radiator Cooling Fan Motor

Component ID: 15

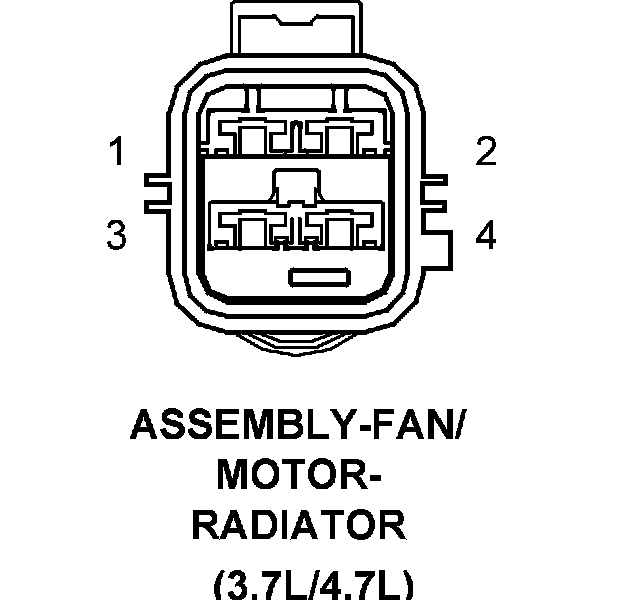

Component : ASSEMBLY-FAN/MOTOR-RADIATOR

Connector:
Name : ASSEMBLY-FAN/MOTOR-RADIATOR
Color :
# of pins : 4
Qualifier : (3.7L/4.7L/6.1L)




Pin Circuit Description
1 N23 10DB/DG HIGH SPEED RADIATOR FAN RELAY OUTPUT
Pin Circuit Description
1 N24 10DG/DB LOW SPEED RADIATOR FAN RELAY OUTPUT
2 Z823 12BK/DG GROUND
3 N24 10DG/DB LOW SPEED RADIATOR FAN RELAY OUTPUT
3 N23 10DB/DG HIGH SPEED RADIATOR FAN RELAY OUTPUT
4 - -

Component Location - 7
