Rear

REAR

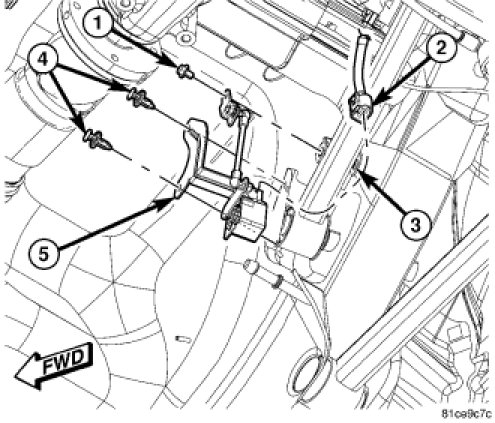

1. Position the rear axle sensor, brackets and link unit (5) to the forward pivot bracket for the rear axle right upper control arm.
2. Secure the sensor mounting bracket to the control arm pivot bracket with two plastic push-pin fasteners (4).
3. Install and tighten the screw (1) that secures the sensor link bracket to the bracket (3) on the rear axle right upper control arm. Tighten the screw to 4 Nm (35 in. lbs.).
4. Engage the vehicle wire harness routing clips to the sensor bracket.
5. Reconnect the vehicle wire harness connector (2) to the sensor connector receptacle.
6. Lower the vehicle.
7. Reconnect the battery negative cable.
